Purpose
To define and edit circular or rectangular dimensions for a pipe, culvert or other underground service. This is stored as Xdata with the 2D or 3D Polyline representing the service so that it can be represented in a realistic way by menu items Design on Cross Sections and Services onto cross sections.
Operation
Select the Polyline

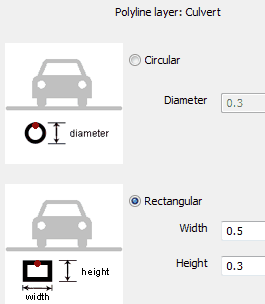

Enter the diameter for a circular service or width and height for a rectangular one.
